PV-HY01
Certification：
TUV
Certificate Number：
NO.B 111007 0002 Rev.05
Rated Voltage：
1500VDC
Temperature Range：
-40℃ ~ +85℃
Safety Level：
ClassII
Protection Level：
IP68
Cable Size Range：
4m㎡
Flame Retardant Level：
5VA
Waterproof Structure：
Potting Sealant
Glue Volume：
TOTAL: 6*3=18ml
Busbar Width：
Up to 8mm
Port Spacing：
12mm
Busbar Connection Type：
Soldering
Insulation Material：
PPO
Contact Material：
Red Copper Or Tin-Plated

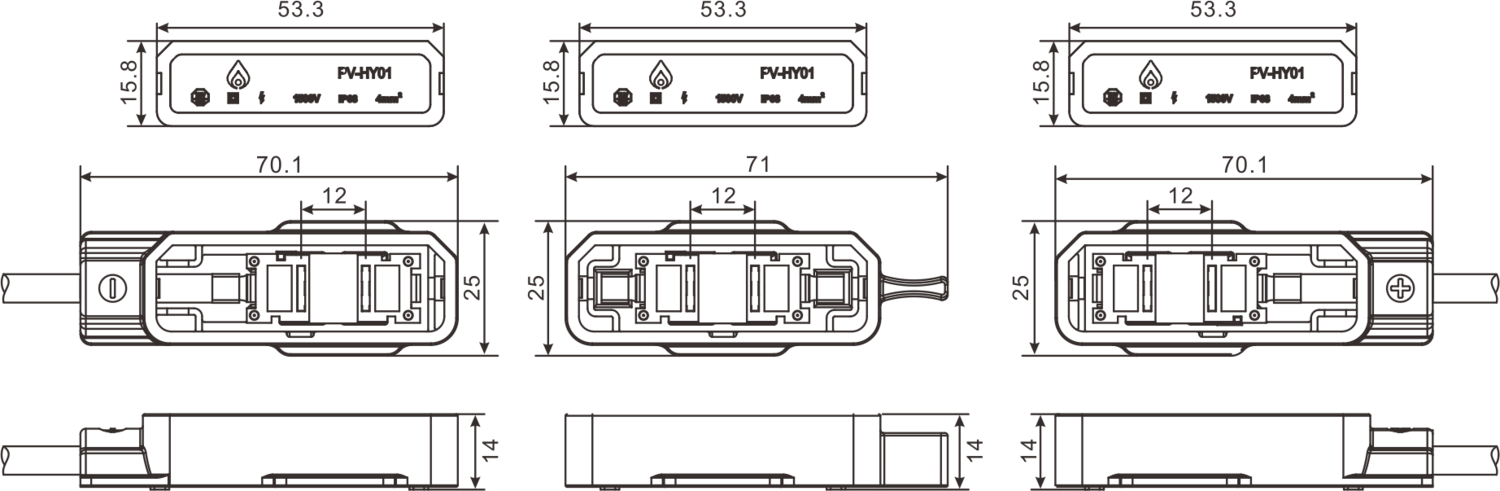

Dimensions：
As Shown
Optional Connector：
PV-H4/EVO2
Prev：
PV-HY03
Next：
PV-HY02
Product Detail
Product Configuration List
Model No.
Rated Current
Diode Layout
Diode Type
Diode Qty
Certifications
PV-HY01
20A
GFT3050SM
3
TUV
PV-HY01
25A
GFT4050SM
3
TUV
PV-HY01
30A
GFT5050SM
3
TUV
