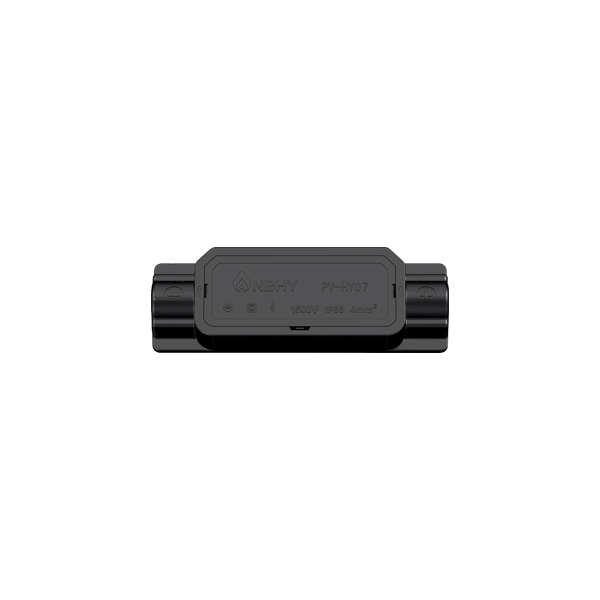

PV-HY07
Certification：
TUV
Certificate Number：
NO.B 111007 0002 Rev.05
Rated Voltage：
1500VDC
Temperature Range：
-40℃ ~ +85℃
Safety Level：
ClassII
Protection Level：
IP68
Cable Size Range：
4m㎡
Flame Retardant Level：
5VA
Waterproof Structure：
Potting Sealant
Glue Volume：
7ml
Busbar Width：
Up to 8mm
Port Spacing：
10mm
Busbar Connection Type：
Soldering
Insulation Material：
PPO
Contact Material：
Red Copper Or Tin-Plated

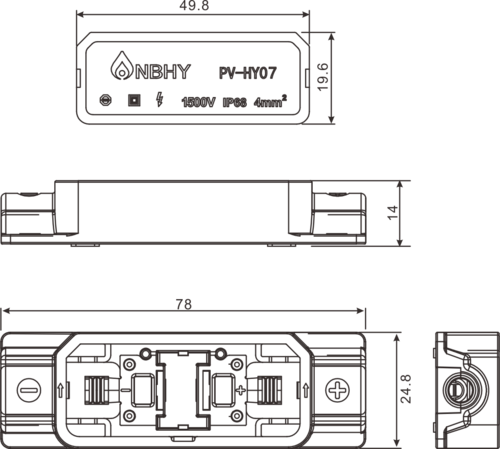

Dimensions：
As Shown
Optional Connector：
PV-H4/EVO2
Prev：
PV-H4S
Next：
PV-HY06
Product Detail
Product Configuration Table
Model No.
Rated Current
Diode Layout
Diode Type
Diode Qty
Certifications
PV-HY07
25A
HY4050MK
1
TUV
PV-HY07
30A
HY5050MK
1
TUV
